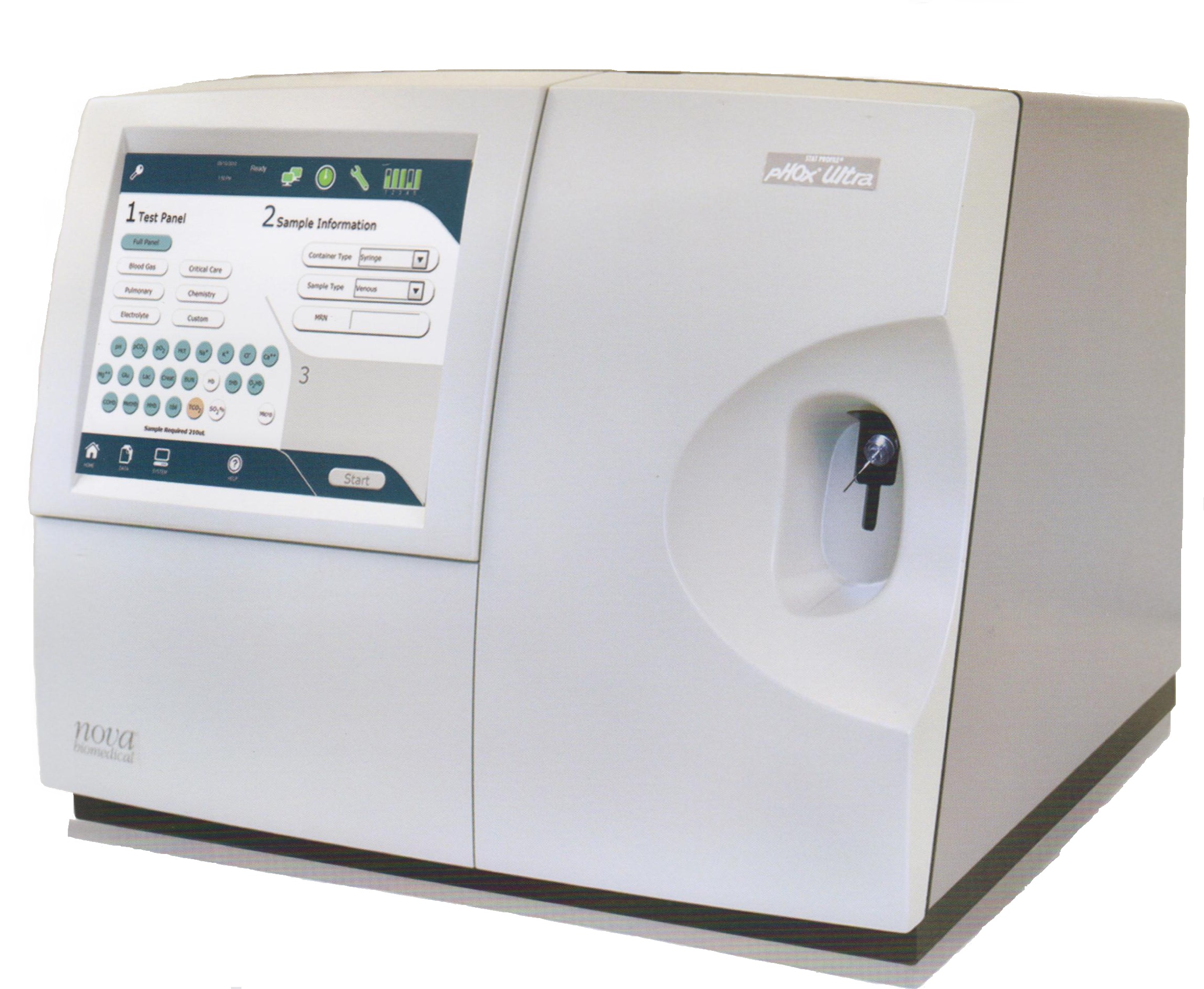

Stat Profile® pHOx® Ultra

The Most Comprehensive Critical Care Analyzer

One Analyzer, Up to 20 Tests

No other blood gas analyzer can match the clinical value of pHOx Ultra it gives up to 20 critical care tests from one small, 210 microliter sample in only 2 minutes. Other partial test panels are available in less than one minute. Measured tests include:

pH, PCO2, PO2, SO2%, Na+, K+, Ca++, Mg++, Cl-, Glucose, BUN/Urea, Creatinine, Lactate, Hct, Hb, O2Hb, HHb, COHb, MetHb, tBil

Customized Menus

pHOx Ultra can be custom configured with as few as 5 tests to as many as 20 tests on-board to satisfy the exact test menu requirements of each department. However the complete test menu does not have to be run on each sample. Up to 30 specific user-defined subsets (panels) can be created for patient populations such as pulmonary, surgical, pediatric, or emergency care.

Simpler, Faster Touchscreen Operation

A new streamlined user interface is very fast and easy to use. The new interface uses graphic icons and clearly labeled buttons for instrument operation. Color shading and highlighting provide visual prompting through a simple, 3-step operation:

1. Select tests
2. Identify the sample
3. Aspirate the sample

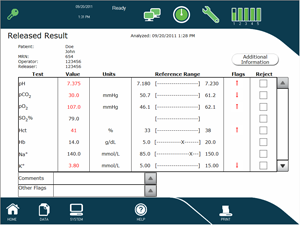

New High Resolution Color Display

Stat Profile Ultra incorporates a large, high-resolution color display. The large format, bright colors and high resolution provide exceptional viewing, and easy to read graphics and data.

Comprehensive Onboard Data Management System

A standard feature on all Stat Profile pHOx Ultra analyzers is a complete on-board Data Management System, allowing data capture and extensive reporting capabilities including:

• Storage and retrieval of patient results, patient demographics, QC, and authorized users
• Data retrieval by name, ID, date, location, or operator
• Patient, QC, utilization and operator reports

Analyzer Networking At No Extra Cost

Multiple pHOx Ultra analyzers can be networked together into a single, common database. A supervisor or authorized operator can access all patient results, QC results and reports from all analyzers. Competitors often offer this capability only as an expensive accessory, adding 30% – 40% to the cost of the analyzer.

Remote Set-up and Control

pHOx Ultra offers comprehensive, time-saving remote set-up, control, and review of multiple pHOx Ultra analyzers. From any point on the LAN, a manager can perform the following functions on a remote analyzer

• Review reagent cartridge and QC cartridge status
• Review instrument calibration status
• Initiate a calibration cycle
• Review quality control status
• Initiate a quality control cycle
• Enable or disable an analyte
• Enable or disable operator access
• Edit normal ranges, critical ranges, QC ranges, QC frequency, operators, test menu, instrument defaults

Connectivity

pHOx Ultra analyzers are compliant with industry standard POCT1-A and ASTM communication protocols for connectivity. These industry standards are used to easily interface pHOx Ultra analyzers to a wide range of connectivity systems including LIS, HIS and middleware systems.

Automated, True QC

An automated, true QC system eliminates all user steps involved in performing multi-level, true liquid quality control, dramatically reducing labor while maintaining the most stringent quality control.

Measured SO2%, Hb, and HCT on Each Sample Without CO-Oximetry

A unique technology feature of Nova pHOx analyzers is their ability to measure hemoglobin, hematocrit and oxygen saturation on each sample. Advanced biosensors, optics and algorithms enable measurement of these parameters without the added cost, hardware and sample volume of a CO-Oximeter.

Optional On Board CO-Oximeter

When a complete profile of hemoglobin fractions is needed as part of the analyzer test menu, pHOx Ultra offers an on-board CO-Oximeter with advanced features:

• Complete CO-Oximetry test panel including O2 Hb, HHB, COHb, MetHb, tBil
• Automatic calibration
• Automatic cleaning of the optical components

Ionized Magnesium

pHOx Ultra provides ionized magnesium as part of its electrolyte panel. Ionized magnesium is a very important electrolyte for cardiac health. This electrolyte works with potassium and calcium to maintain strong and rhythmic cardiac contraction. It is the most common electrolyte abnormality among post operative intensive care patients.

Exceptional Reliability

Stat Profile pHOx Ultra hardware and software designs are based on the extraordinary reliability of previous generation pHOx analyzers that have been proven in thousands of installations during the last decade.

Multiple Department Applications

The customizable whole blood test menu, fast analysis time, and low operating cost make pHOx Ultra ideal for multiple testing locations:

• OR, ICU: Provides the most comprehensive menu for managing high acuity ICU and OR patients
• Emergency Department: Reduces waiting times for essential laboratory tests, improving patient triage and satisfaction
• Stat Lab: Supports the stat testing workload of multiple departments
• Mobile Testing: pHOx Ultra on a mobile cart with battery backup enables it to be moved to any hospital location for stat testing as needed.

Low Cost Critical Care Testing

pHOx Ultra combines long life sensors plus low cost reagent cartridges to provide the most cost effective way for a hospital to offer blood gas/critical care testing. pHOx Ultra provides a 20-test critical care profile at a cost equivalent to testing performed in the central laboratory. Other point of care devices that use single-test or 30-day sensor cartridges can be 5 to 10-times more costly.

The pHOx Ultra comprehensive on-board Data Management System eliminates the high cost of purchasing a separate data manager. The Data Management System enables networking of multiple pHOx Ultra analyzers, reducing connectivity and record keeping costs.

Certifications & Compliance: ISO 13485:2003 Quality System Registration, IVDD, Meets IEC 61010, UL, CSA Standards FDA Labeling: For in-vitro diagnostic use.

Patented Technology. Patents 6,287,451 / 6,837,976 / EP 1 212 609 / CA 2,375,092 / EP 1497 449 / JP 405 0078

Specifications subject to change without notice.
