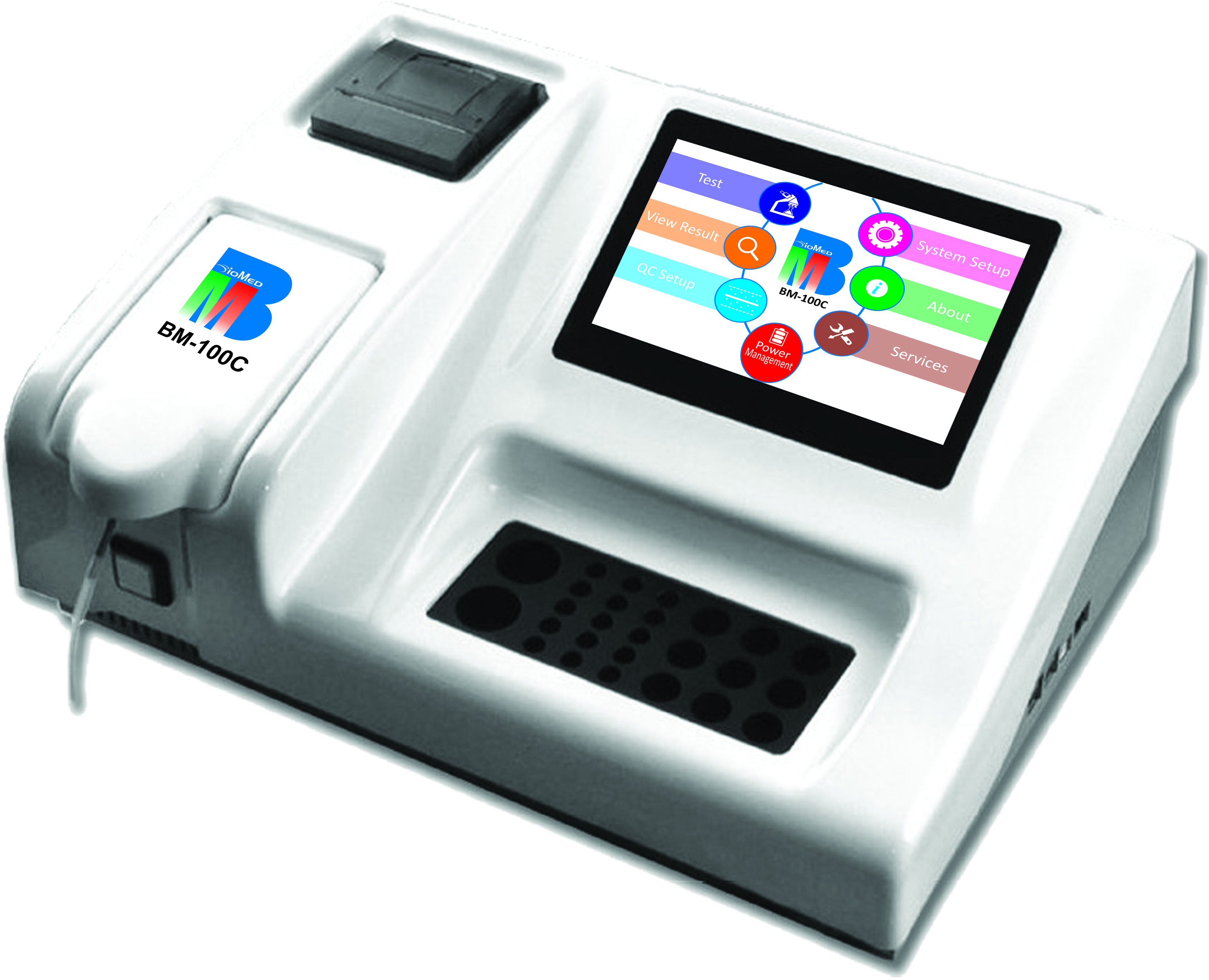

BM-100C
Clinical chemistry & coagulation Analyzer
Technical Specifications
| Analysis method : | 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation |
|---|---|
| Optics : | 7 filters, 340, 405, 450, 505, 546, 578, 630. 2 more for optional |
| Lamp house : | 6V 10W halogen lamp |
| Display : | 7.0" TFT LCD with touch screen, 800*480 pixels |
| Printer : | Build-in thermal printer, 57mm printer paper |
| Interface : | 4 USB Host; 1 USB Slave; 1 Ethernet port |
| Power requirement : | Wide power supply AC100-240V, 50/60Hz |
| Temperature : | 25, 30, 370and Room temperature |
| Flow cell capacity &optical path : | 32u1, 10mm |
| Resolution : | 0.0001 Abs |
| Photometric range : | 0.0000-3.0000 Abs |
| Memory : | DDR2 SDRAM: 1G bit Flash: 256 MB Over 300programmers, 200000 results can be stored |
| CPU : | ARM Cortex-A8, 720MHz |
| Incubator : | Inner multi-function incubator |
| Incubator Temperature : | 37°C |
| Dimension : | 400*300*191(L*W*H) |
| Weight : | 7.5Kg |
Biomed reserve rights to make any modification of machine without prior notice.
